ERW Steel Pipe
We have API 5L/ASTM A53 Gr.B ERW Steel Pipe,Welded Carbon Steel Pipe in stock,they have been fully tested to ensure the high quality.The production of our ERW pipes is tightly regulated
More details，please email us
Description
Package Information
Inquiry
| Product | ERW(Electric Resistance Welded) Steel Pipe,ERW Carbon Steel Pipe，EFW Steel Pipe, HFW Steel Pipe,ERW Steel Tube |
| Application | Used for Oil/Gas/Water transmission,Machinery Manufacturing |
| Size | OD: 21.3 ~ 660mm |
| WT: 1-20mm | |
| LENGTH:0.5~22m, Fixed Length (5.8/6/11.8/12mtr), SRL, DRL | |
| Standard | API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70; ASTM A53,ASTM A500,JIS G3466; ASTM A252,ASTM A178; AN/NZS 1163, AN/NZS 1074;EN10219-1,EN10217-1 |
| Ends | Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends,BSP/NPT Thread with coupling,Grooved |
| Surface | Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Hot dip galvanized/Electro galvanized, Black,Varnish coating/Anti rust oil, Anti-corrosive Coatings (Coal Tar Epoxy,Fusion Bond Epoxy,FBE,3PE) |
| Packing | Bundled/ln Bulk, Plastic Caps Plugged, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Waterproof Paper Wrapped, PVC sleeve, and sackcloth with several steel strips, Plastic caps. |
| Test | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, NDT TEST ( ET TEST, UT TEST) |
| More details | Delivery time and prices, please mail us：[email protected] |

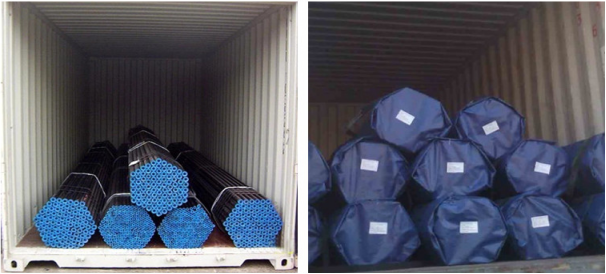

| Packing |

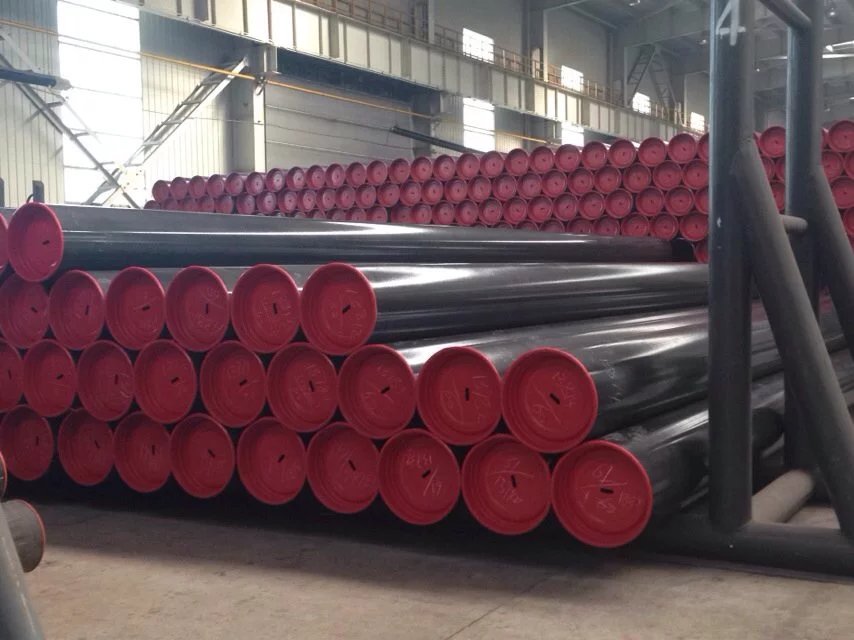

| 1- Plastic caps plugged at the two sides of pipe ends |
| 2- Should be avoided by the steel strapping and transport damage |
| 3- Bundled signs should be uniform and consistent |
| 4- The same bundle(batch) of steel pipe should be came from the same furnace. |
| 5- The steel pipe has the same furnace number, the same steel grade, the same specifications. |
